Dish Dryer Fan｜12538 Application Solution

◆ Key Factors in Dish Dryer Drying Efficiency

As modern households place greater emphasis on kitchen hygiene, storage efficiency, and convenience, dish dryers are evolving from traditional tableware storage appliances toward faster drying, high-temperature sterilization, low-noise operation, and energy-efficient control. Residual moisture on tableware can lead to unpleasant odors and hygiene concerns when left in a closed and humid cabinet for extended periods. Therefore, establishing stable hot-air circulation through heating elements and fans is essential to improving drying efficiency.

However, the interior of a dish dryer contains complex airflow resistance caused by dishes, racks, and tableware. Different placement arrangements can also affect airflow distribution. In addition to providing sufficient airflow, the fan must balance static pressure, airflow uniformity, noise, temperature resistance, and service life to achieve an efficient and reliable drying system.

◆ Development Background and Challenges

Most household dish dryers currently use a combination of heating and forced convection to reduce moisture on the surface of tableware. Increasing fan speed can improve circulating airflow and shorten drying time, but it may also increase blade passing frequency, aerodynamic noise, and structural vibration, potentially affecting the user experience in residential environments.

Furthermore, fans operating under repeated temperature and humidity cycles face challenges related to the heat resistance of motors, bearings, electronic components, and materials. Therefore, the design must balance temperature resistance, moisture resistance, and long-term service life.

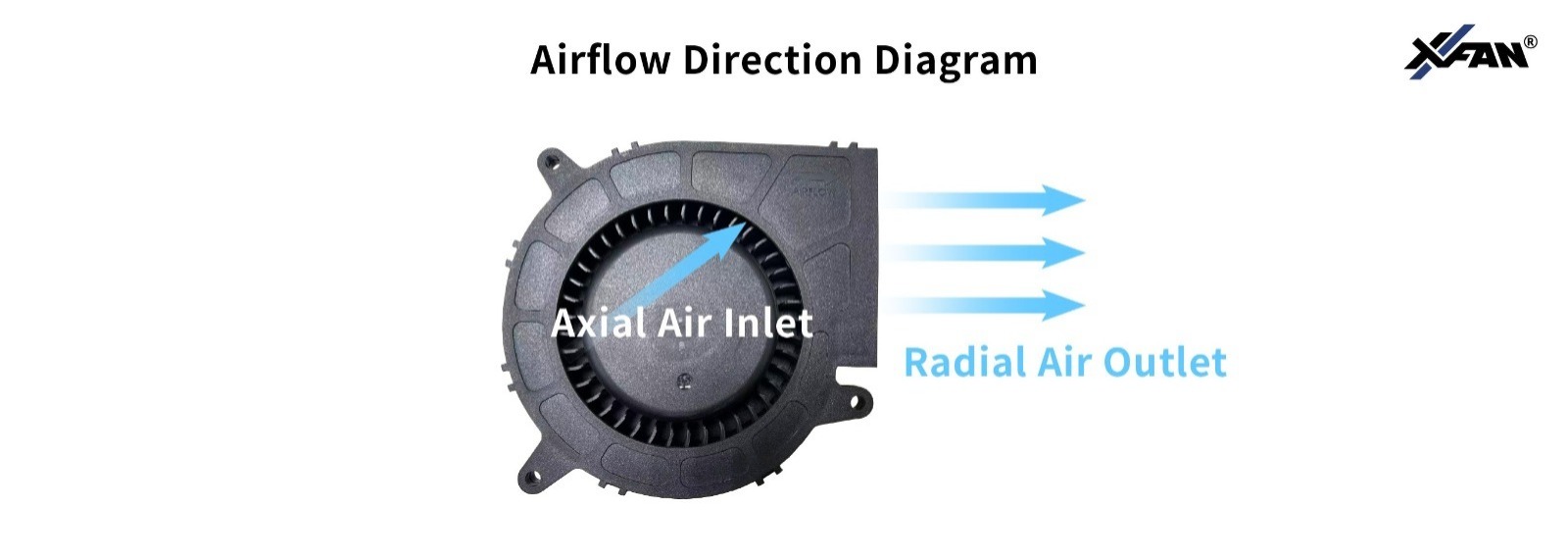

◆ Airflow Mechanism and Heat Dissipation Principle

High-efficiency blower motors are the primary configuration. The airflow enters axially to draw in cool air and exits radially toward the heat source, enabling rapid heat dissipation.

◆ Fan Technology Advantages

1. Large Centrifugal Impeller for High Airflow and Static Pressure

Overcomes the high airflow resistance caused by dishes, racks, and air ducts.
2. Ball Bearing Structure for Extended Service Life in High-Temperature Environments

Suitable for long-term operation at elevated temperatures. It helps reduce the impact of temperature on lubricant and bearing performance, contributing to greater long-term fan reliability.
3. AC Direct Drive for a Simple and Reliable System Architecture

For dish dryers that primarily operate through fixed drying programs, AC direct drive provides a balance of simplified control, durability, and cost-effectiveness.

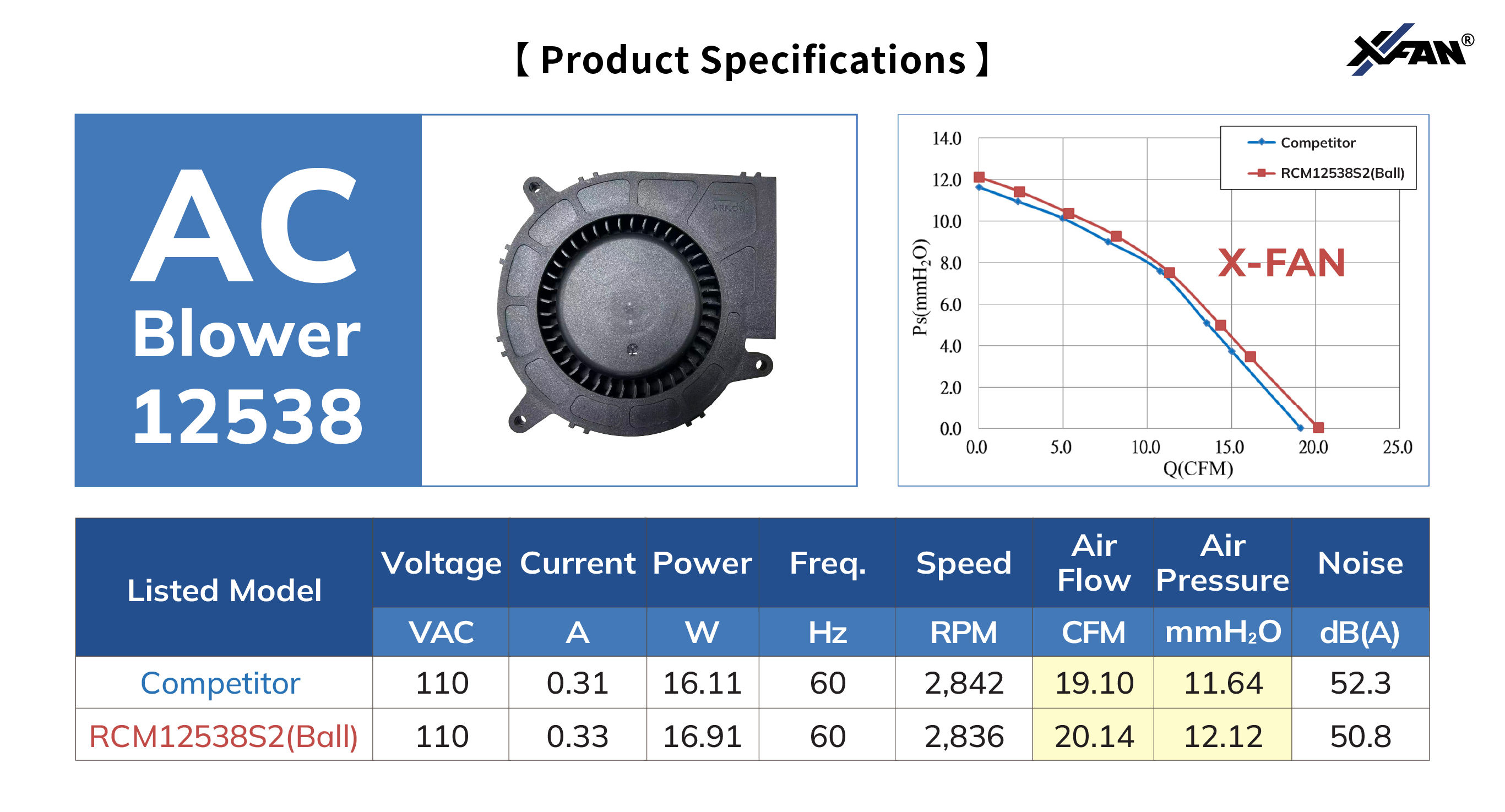

◆ Product Specifications & Market Comparison

Under the same dish dryer interior arrangement, X-FAN delivers superior airflow performance compared with commercially available products, regardless of whether the tableware is arranged densely or with more spacing.

◆ Practical Application Benefits

1. Faster Tableware Drying

Sufficient circulating airflow accelerates the evaporation of moisture from tableware surfaces, helping to shorten the overall drying time.
2. More Uniform Drying Performance

Superior static pressure helps overcome the airflow resistance created by dishes and racks, allowing hot air to reach different areas more effectively while reducing localized water accumulation and drying dead zones.
3. Greater Durability for Long-Term Operation

The ball bearing structure is better suited to the high-temperature operating conditions repeatedly encountered by dish dryers, helping improve the fan’s long-term reliability and service life.
4. A More Hygienic Tableware Storage Environment

Effectively removes residual moisture from tableware and reduces prolonged humidity inside the cabinet, helping minimize unpleasant odors and hygiene concerns associated with damp environments.

◆ Conclusion

Through a design featuring high airflow, high static pressure, and high-temperature resistance, X-FAN provides stable hot-air circulation for dish dryers, helping improve overall drying efficiency and equipment operating performance.

1. Advancing high-efficiency drying technology for kitchen appliances
2. Improving product reliability in high-temperature and high-humidity environments
3. Driving the development of low-noise fan technology
4. Expanding applications for hot-air circulation in home appliances
