RD9025-5

产品介绍 FAN RD9025-5

RD9025-5

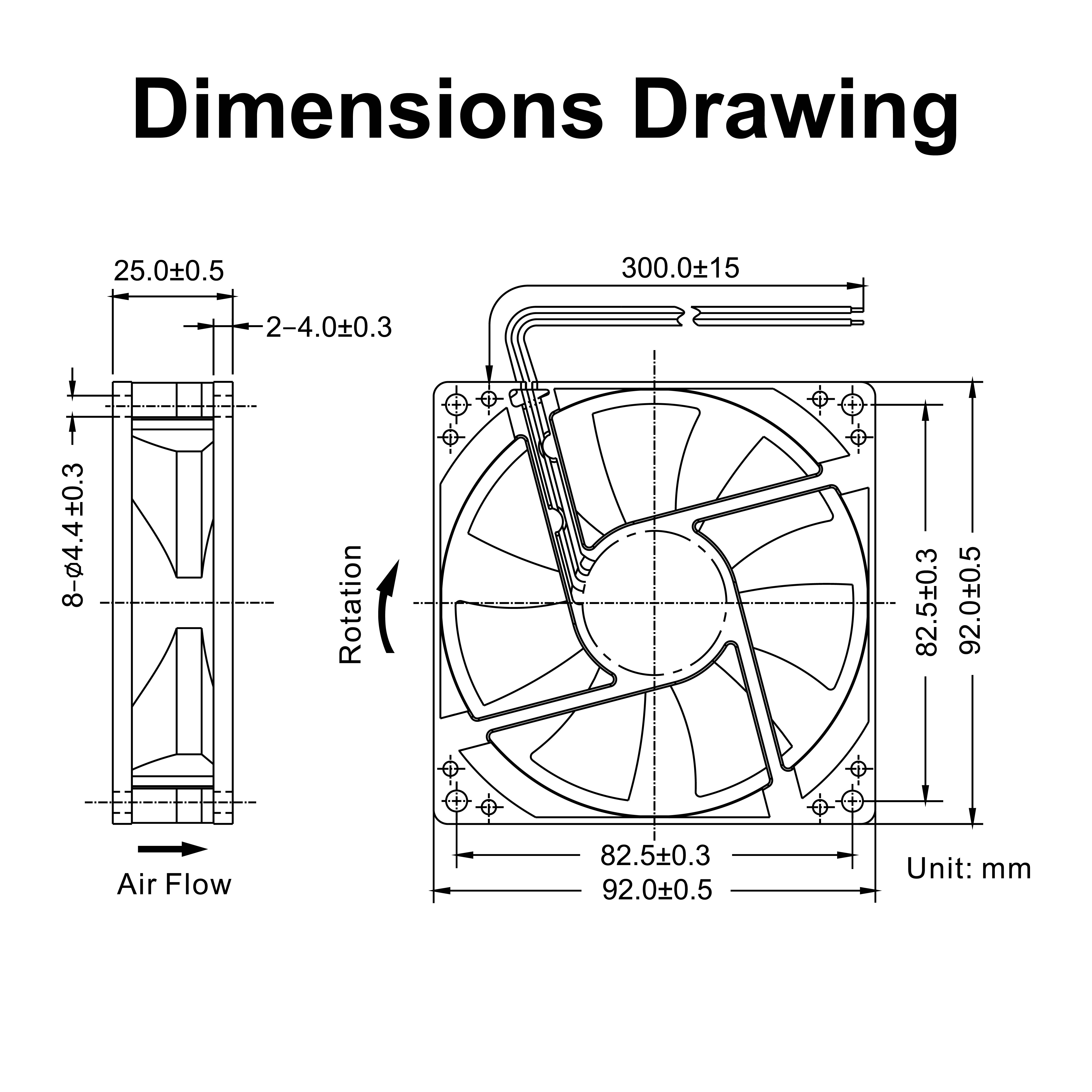

92x92x25mm

General Specification
• Frame and Impeller：Thermal Plastic , UL 94V-0
• Lead Wires：UL Type
( + )：Red ( - )：Black
• Operating Temperature：-10°C~70°C
• Operating Humidity：35%~85%RH
• Storage Temperature：-40°C~80°C
• Storage Humidity：35%~85%RH

加入洽询档案下载

规格

Compare	Listed Model	Frame Size	Bearing System	Voltage	Operation Voltage	Current	Speed	Air Flow	Pressure	Noise	Weight	Available Features （Optional）
Compare	Listed Model	mm	Bearing System	VDC	VDC	A	RPM	CFM	mmH₂O	dBA	g	FG	RD	TC	PWM

Specifications are subjected to change without prior notice.

The current values shown in above table may not be the same as rated ones.
