RA1751-C1

产品介绍 FAN RA1751-C1

RA1751-C1

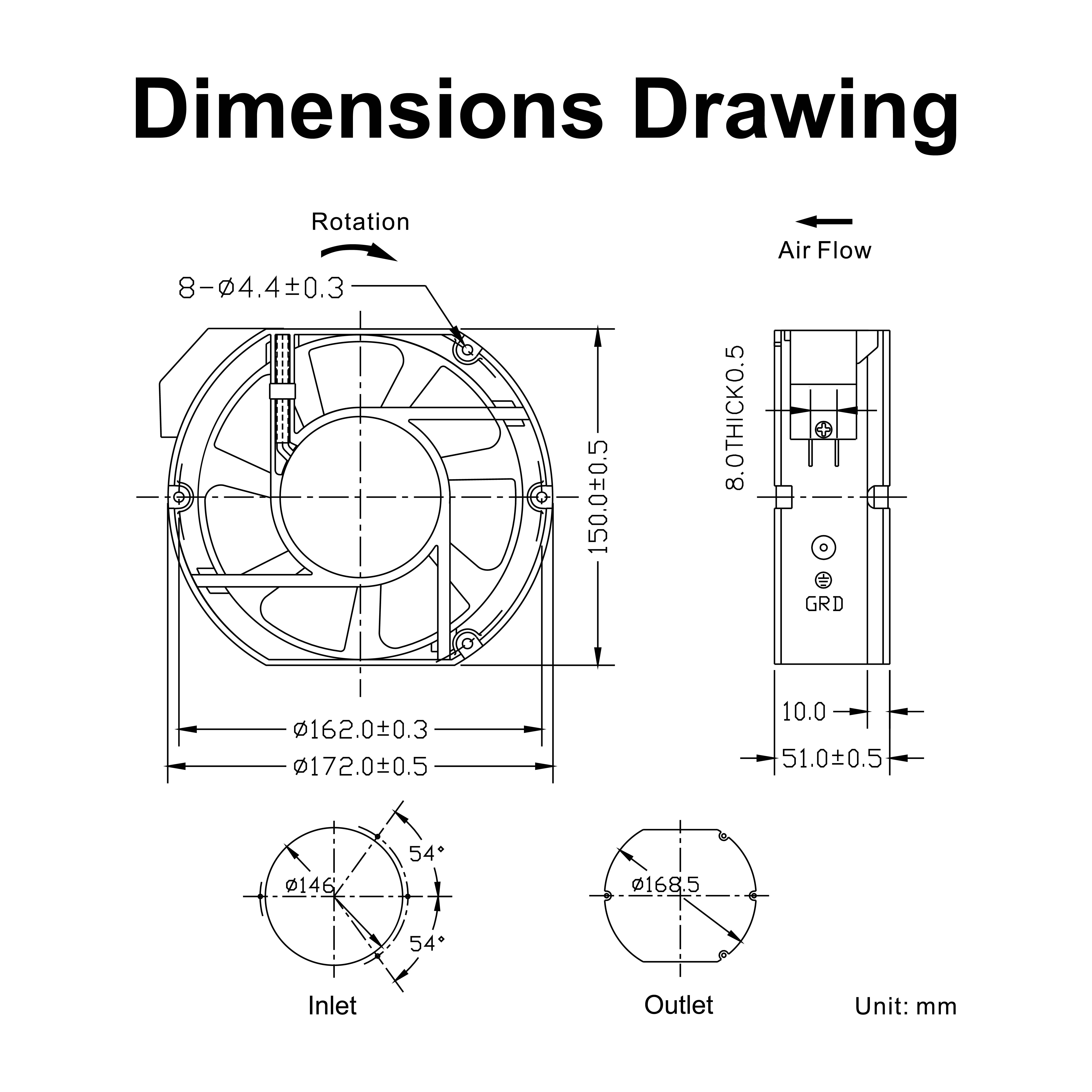

172x150x51mm

General Specification
• Frame：Aluminum Alloy
• Impeller：PBT UL 94V-0 Reinforced Plastic
• Terminals：0.5mm
• Lead Wire：AWG#22 UL 1015 ( Optional )
• Motor：Capacitor-Run Induction Motor
• Operating Temperature：-10°C~65°C
• Operating Humidity：35%~85%RH
• Storage Temperature：-40°C~75°C
• Storage Humidity：35%~85%RH

加入洽询档案下载

规格

Compare	Listed Model	Frame Size	Bearing System	Voltage	Freq.Hz	Current	Power	Speed	Air Flow		Pressure	Noise	Weight
Compare	Listed Model	mm	Bearing System	VAC	Freq.Hz	A	W	RPM	M³/hr	CFM	mmH₂O	dBA	g

Specifications are subjected to change without prior notice.

The current values shown in above table may not be the same as rated ones.
